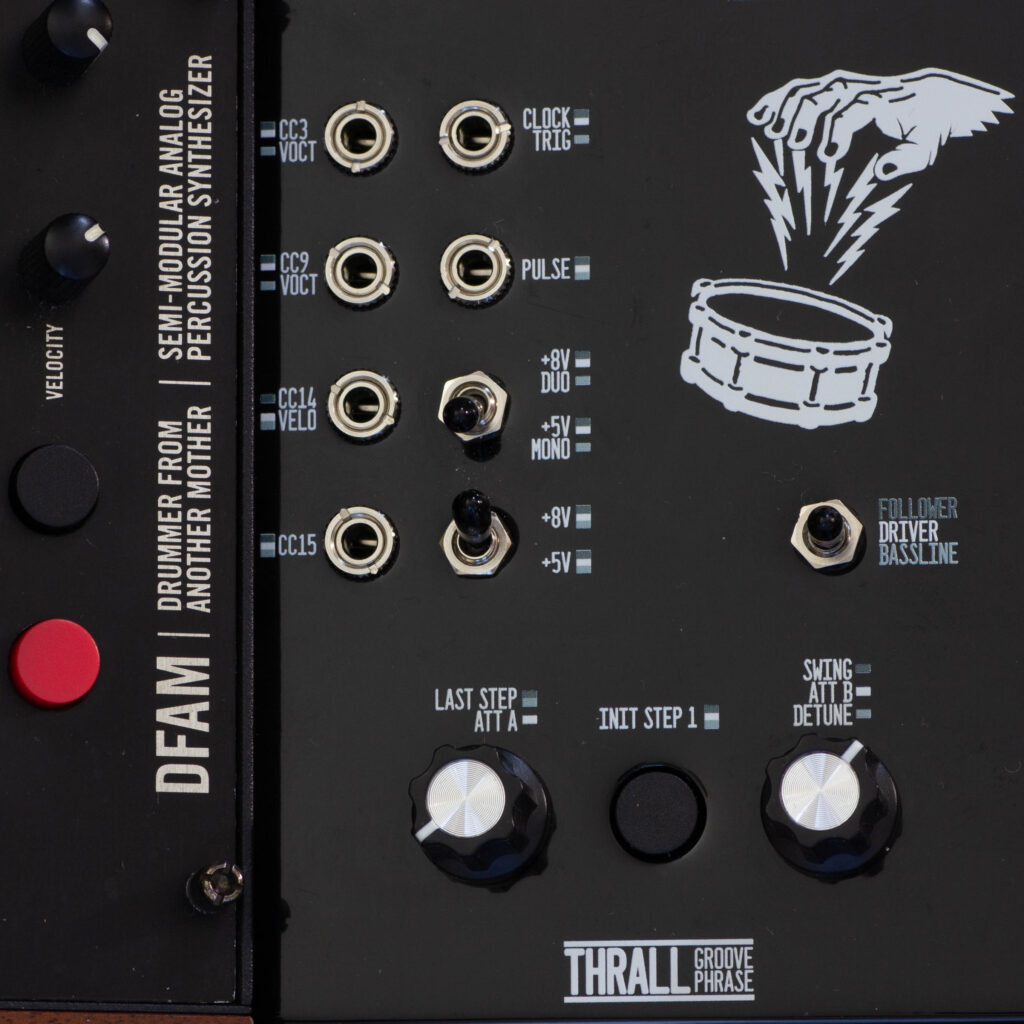

THRALL

THRALL allows a Moog DFAM to be integrated into a MIDI environment in three different ways: synced to MIDI clock, sequenced like a drum machine, or used as a melodic synthesizer.
THRALL also converts MIDI CCs into analogue signals. It also features an additional pair of clock and reset outputs.

To learn more about the three FOLLOWER, DRIVER and BASSLINE modes, see the article dedicated to THRALL.

Main features:

-Sequence length from 2 to 8 steps, with swing
-Several clock divisions available
-+5 V or +8 V CV level for CV outputs 3 and 4
(see the DFAM manual for compatible inputs)
-Accurate 1 V/oct output (16-bit DAC)
-MIDI Learn for the MIDI channel
-Additional clock and reset outputs (0/+5 V)

-MIDI input: 5-pin DIN
-Outputs on 3.5 mm jacks
-Power supply: +12 V DC, 150 mA minimum, 5.5 × 2.1 mm
connector, centre positive
-Dimensions: 125 × 95 × 55 mm


–Box contents: THRALL + user manual
-Optional power supply

A Eurorack version of THRALL is currently being finalised.
